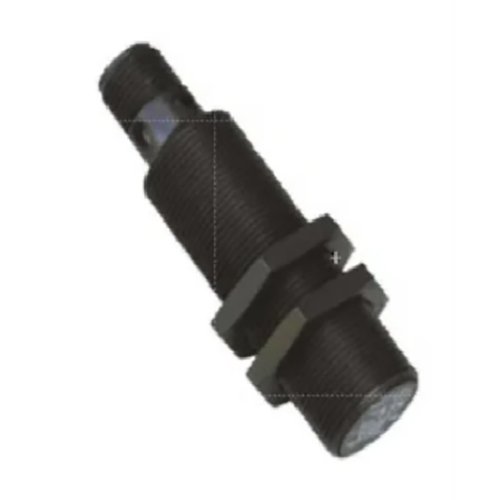

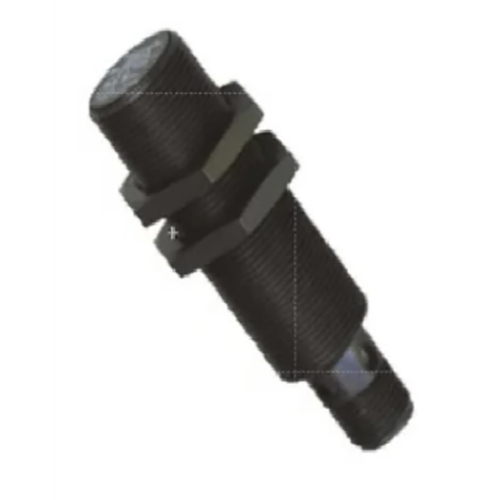

Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors

Name: Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors
Brand: Electro Automation Industries
Price: 450 INR
Availability: InStock

Price 450 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors Specification

Surface Finish
Nickel plated

Connector Type
2 m cable

Humidity %
35-95% RH

Insulation Material
Plastic (internal components)

Operating Temperature
-25C to +70C

Efficiency
High repeat accuracy

Shape
Cylindrical

IP Rating
IP67

Mounting Type
Flush Mount

Feature
Flush mounting, LED indication

Overheating Protection
YES

Product Type
Inductive Proximity Sensor

Application
Industrial

Frequency (MHz)
0.05 MHz

Rated Voltage
48 V

Output Type
PNP Normally Open

Color
Metallic

Size
18 mm diameter

Input Voltage
10-30 V DC

Material
Stainless Steel

Connection Type
Cable

Sensing face material
Plastic

Model
NBB5-18GM50-E2-C-C1

Sensor type
Inductive

Switching element function
NO

Output Current
200 mA max

Sensing distance
5 mm

Short-circuit protection
Yes

Response time
<2 ms

Polarity protection
Yes

Housing length
50 mm

Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors

Jump on this formidable deal for the Pepperl Fuchs NBB5-18GM50-E2-C-C1 Inductive Proximity Sensor-a gilt-edged solution for industrial automation! Designed with a high-efficiency 5 mm sensing distance, PNP Normally Open output, and an IP67-rated, stainless-steel cylindrical body, this sensor boasts outstanding robustness and versatility. Enjoy advanced features like polarity and short-circuit protection, flush-mount installation, and LED indication. With a towering 200 mA output current and swift <2 ms response time, buy online to secure this elite sensor from top Indian exporters, suppliers, and traders.

Versatile Industrial Applications and Easy Integration

The Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensor is tailored for diverse industrial environments, excelling in automation, assembly lines, robotics, and machinery monitoring. Specifically designed for detecting metal objects without contact, it's optimal for conveyor systems and process control. Its flush-mount configuration allows seamless installation, while the robust stainless steel housing ensures durability. Application is straightforward-connect the pre-wired 2 m cable to your system and mount the sensor at the desired position for reliable operation.

Export Excellence, Efficient Delivery, and Competitive Pricing

Delivered across key export markets such as Asia, Europe, and Africa, the Pepperl Fuchs NBB5-18GM50-E2-C-C1 is available at the lowest price from authorized Indian suppliers and traders. Each unit is safely packed in industry-standard packaging to guarantee product integrity during transit. The main domestic market also benefits from swift delivery, transparent proposal amounts, and dedicated after-sales support, making this proximity sensor a top choice for both exporters and domestic clients seeking quality and reliability.

FAQ's of Pepperl Fuchs NBB5-18GM50-E2-C-C1 Proximity Sensors:

Q: How is the installation process of the NBB5-18GM50-E2-C-C1 Proximity Sensor carried out?

A: Installation is user-friendly; mount the cylindrical sensor flush against the desired surface using the provided bracket, connect the pre-attached 2-meter cable to the control system, and confirm proper function via the integrated LED indicator.

Q: What are the primary benefits of using this proximity sensor in industrial automation?

A: The sensor offers non-contact metal detection, ensuring reliable performance in harsh conditions due to its rugged stainless steel construction, quick response time, short-circuit and polarity protection, and high repeat accuracy.

Q: Where can the NBB5-18GM50-E2-C-C1 sensor be used effectively?

A: It is ideal for manufacturing facilities, automated conveyors, robotics, and process control environments, especially where precise metal object detection and high durability are essential.

Q: When should you choose a sensor with flush mounting capability?

A: Flush mounting is advantageous in settings where the sensor needs to be installed level with or embedded within machine parts, offering protection against mechanical damage and minimizing accidental collisions.

Q: What packaging standards are used for exporting the Pepperl Fuchs sensor?

A: Each sensor is delivered in robust packaging that provides maximum protection against moisture, dust, and mechanical shocks during international and domestic transit.
