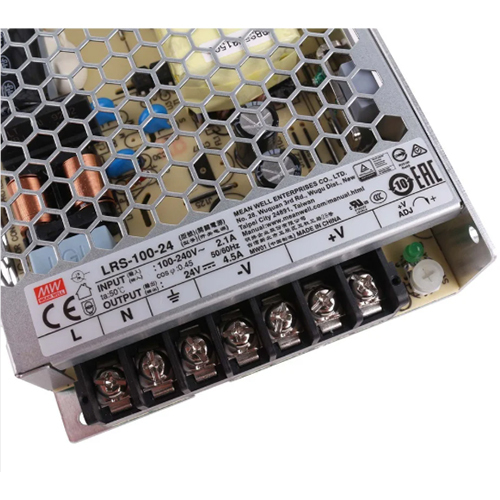

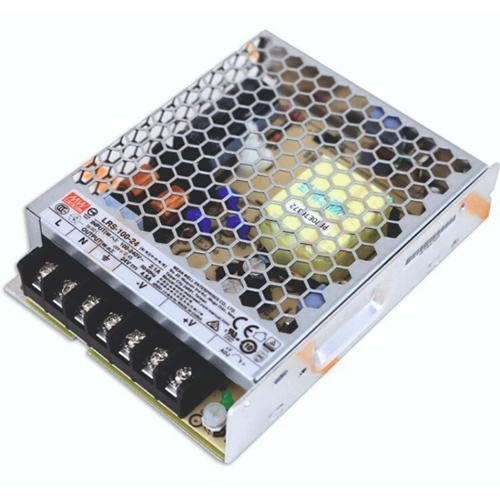

Meanwell lrs 100 24 SMPS

Name: Meanwell lrs 100 24 SMPS
Brand: Electro Automation Industries
Price: 750 INR
Availability: InStock

Price 750 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Meanwell lrs 100 24 SMPS Specification

Power Supply
AC-DC

Output Current
4.5A

Rated Current
4.5A

Rated Power
108W

Current Range
0~4.5A

Output Type
Single Output

Phase
Single Phase

Power Factor
>= 0.5 at 230VAC

Application
Industrial Automation

Cooling Method
Convection

Connector Type
Screw Terminal

Working Temperature
-30C ~ +70C

Operating Temperature
-30C ~ +70C

Features
Ultra Slim, High Reliability, LED Indicator

Noise Level
<50mV

Product Type
Switching Power Supply

Output Power
108W

Output Frequency
47~63Hz

Input Voltage
85~264VAC, 120~373VDC

Voltage Protection
Overload, Over Voltage, Short Circuit

Efficiency
up to 89%

Material
Metal Casing

Line Regulation
0.5%

Storage Temperature
-40C ~ +85C

Weight
340g

Enclosure
Perforated Metal

Family
LRS

Dimensions
129 x 97 x 30mm

Isolation Voltage
3kVAC input-output

Input Protection
Fuse & MOV

Surge Tolerance
300VAC 5s

LED Indicator
Yes

Humidity Tolerance
20~90% RH

MTBF
>720,600 hours

Series
LRS-100

Ripple & Noise
150mVp-p

Meanwell lrs 100 24 SMPS Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Meanwell lrs 100 24 SMPS

Experience the lowest price and incredible bargain on the Meanwell LRS-100-24 SMPS-the praiseworthy power supply for industrial automation. Featuring a superior 108W output with a polished single output of 24V/4.5A, it ensures outstanding performance with high efficiency up to 89%. Enjoy peace of mind with advanced input protection, voltage safeguards, and a robust perforated metal casing. Compact yet reliable, it boasts a long MTBF over 720,600 hours. Don't miss the price cut-invest in this polished, high-quality, and dependable power supply for your industrial needs.

Clear Usage Instructions & Methods for Industrial Application

The Meanwell LRS-100-24 SMPS is designed for straightforward installation using screw terminals. Simply connect the AC-DC input as per the labeled markings and secure your load to the single output. Ideal for a range of industrial automation equipment, this superior SMPS ensures stable voltage delivery, even in challenging environments. Use it where polished, reliable, and energy-efficient power is crucial for uninterrupted industrial performance.

Supply Ability, FOB Port & Sample Availability at the Best Price

As a prominent exporter, supplier, and trader in India, we guarantee consistent supply ability of the Meanwell LRS-100-24 SMPS. Our products are dispatched via major FOB ports, ensuring safe and efficient freight delivery. Samples are available on request. Take advantage of our lowest price and attractive asking price offers. Enjoy smooth order processing and quick shipment options tailored for various industry requirements.

FAQ's of Meanwell lrs 100 24 SMPS:

Q: How can I install the Meanwell LRS-100-24 SMPS in my industrial automation setup?

A: Installation is simple using the screw terminal connectors. Securely fasten AC-DC input leads as indicated, then connect the load to the single output terminal. Follow the manufacturer's instructions for optimal safety and performance.

Q: What protections does the Meanwell LRS-100-24 SMPS offer?

A: This power supply provides comprehensive protection including input fuse & MOV, overload, overvoltage, and short circuit safeguarding, ensuring reliable operation even in demanding environments.

Q: When should I consider using this SMPS for my applications?

A: The Meanwell LRS-100-24 SMPS is best suited for industrial automation projects requiring a polished, compact, and efficient power solution, especially when stable output and high reliability are critical.

Q: Where is the Meanwell LRS-100-24 SMPS supplied from?

A: We supply and export this SMPS from India, using major FOB ports for convenient and cost-effective freight options to your location.

Q: What benefits does the LED indicator provide in this power supply?

A: The integrated LED indicator offers instant visual confirmation of power status, making troubleshooting and system monitoring quick and convenient.
