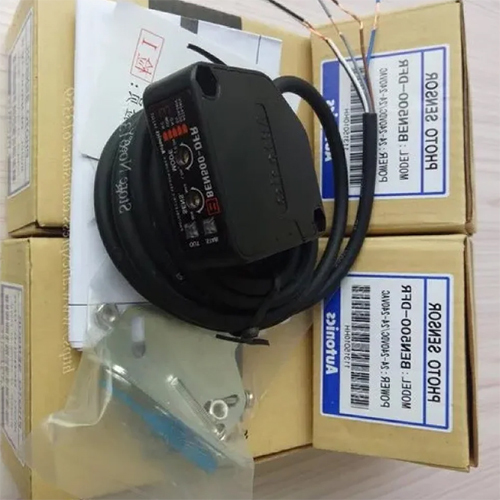

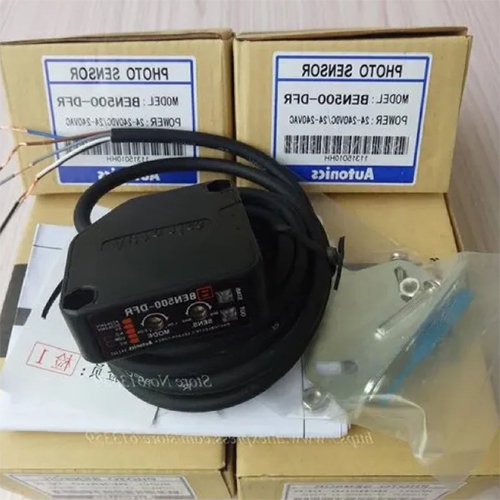

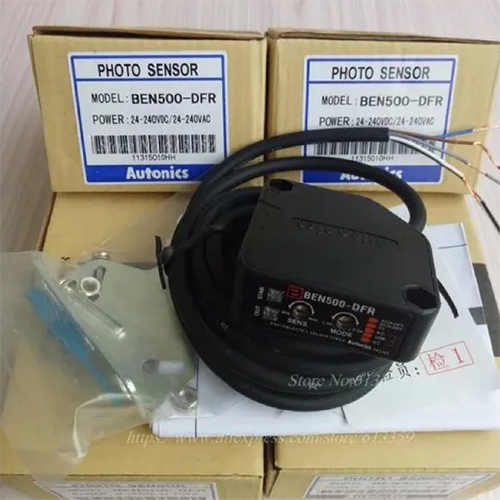

BEN500-DFR Autonics Sensor

Name: BEN500-DFR Autonics Sensor
Brand: Electro Automation Industries
Price: 1200 INR
Availability: InStock

Price 1200 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

BEN500-DFR Autonics Sensor Specification

Mounting Thread
M18

Spectral Range
Red LED (660 nm)

Features
Short-circuit and Reverse Polarity Protection

Housing Material
Polycarbonate

Wireless
No

Response Time
1 ms max.

Sensor Type
Diffuse Reflective

Power Consumption
Max. 25mA

Cable Length
2 meters

Mounting Type
Panel or Bracket

Operating Temperature
-25C to +55C

Interface
2-wire, 3-wire

Measurement Range
0.1 to 5 m

Ingress Protection
IP66

Signal Type
Digital

Sensitivity
Adjustable

IP Rating
IP66

Application
Automation, Conveyor, Packaging

Product Type
Photoelectric Sensor

Material
Plastic

Input
12-24VDC

Output
NPN/PNP Open Collector

Function
Diffuse Reflective Sensing

Usage
Object Detection

Accuracy
5%

Resolution
Standard

Voltage
12-24V DC

Weight
Approx. 65g

Shock Resistance
500 m/s2 (approx. 50G) in X, Y, Z directions

Light Source
Red LED

Ambient Humidity
35 to 85 %RH

Vibration Resistance
10 to 55Hz, 1.5mm double amplitude

Connection Type
Pre-wired Cable

Indicator
Operation Indicator (Red LED), Stability Indicator (Green LED)

Differential Travel
15% max. of sensing distance

Control Output
Maximum 100mA

Protection Circuit
Reverse polarity and surge protection

BEN500-DFR Autonics Sensor Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About BEN500-DFR Autonics Sensor

Discover the rare BEN500-DFR Autonics Sensor, a dazzling solution that blends elite performance with unbeatable value. With a premier Red LED light source, this sensor provides reliable object detection for automation, conveyors, and packaging applications. Engineered for longevity, it features robust polycarbonate housing, IP66 ingress protection, and enhanced shock and vibration resistance. Benefit from adjustable sensitivity, a swift 1 ms response, and universal NPN/PNP output. Pre-wired for convenience, this bargain offers top-tier reliability, safety features, and versatility-all at a price you can't miss.

Robust Material, Versatile Functionality, Plant Ready

Crafted from high-quality polycarbonate, the BEN500-DFR Autonics Sensor excels in object detection across various plant automation settings. Its plastic housing ensures durability without adding excess weight, while IP66 water and dust resistance makes it suitable for rugged environments. Used to enhance accuracy in conveyor operations and packaging lines, the sensor's compact size and mounting options align with diverse industrial plant applications, providing adaptable installation and unwavering performance under challenging conditions.

Seamless Orders, Secure Packaging, Extensive Reach

Order processing for the BEN500-DFR Autonics Sensor is prompt, with logistics tuned for timely delivery across global markets. The sensor is securely packaged to prevent transit damage and maintain integrity upon arrival. Payment terms are flexible, catering to different business needs, and main export markets include Asia, Europe, and beyond. Leverage a smooth order-to-delivery process-each step ensuring you receive genuine, premier Autonics products backed by reliable after-sales support.

FAQ's of BEN500-DFR Autonics Sensor:

Q: How does the BEN500-DFR Autonics Sensor detect objects in industrial settings?

A: The BEN500-DFR employs a diffuse reflective sensing function, utilizing a red LED to detect objects within a range of 0.1 to 5 meters, making it ideal for automation and packaging lines.

Q: What are the main benefits of the polycarbonate housing?

A: The durable polycarbonate housing ensures lightweight yet robust protection against harsh environmental factors, providing impact resistance and maintaining IP66 ingress protection.

Q: Where can the BEN500-DFR Sensor be used?

A: This sensor is well-suited for use in industrial automation, material handling, conveyor systems, and packaging applications due to its accuracy, resilience, and versatility in mounting options.

Q: What is the order processing and delivery process for this sensor?

A: Orders are processed quickly, with reliable logistics ensuring on-time delivery. Each sensor is securely packaged for safe transit, and flexible payment terms are offered for ease of purchase.

Q: How does the sensor ensure operational safety?

A: It features short-circuit, surge, and reverse polarity protection, along with sturdy construction and dual LED indicators to ensure safe and reliable operation in demanding environments.
