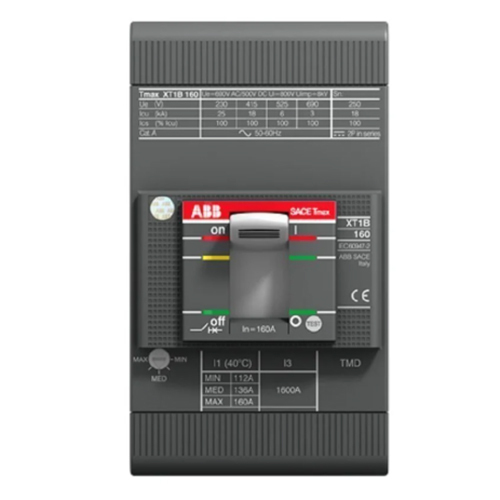

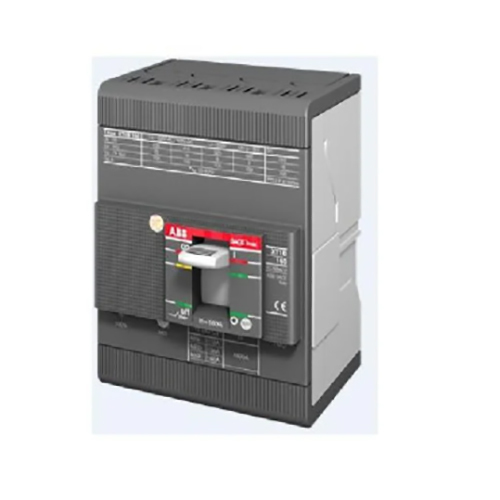

ABB XTI H 125A TP 70kA TMD -TMF MCCB

Get a Price/Quote

MOQ : 10 Pieces

ABB XTI H 125A TP 70kA TMD -TMF MCCB Specification

Response Time
Immediate upon fault detection

Power Consumption
Negligible (passive device)

Mounting Type
Panel mounting

Interface
Manual, mechanical lever

IP Rating
IP20

Sensitivity
Standard TMD-TMF sensitivity

Ingress Protection
IP20

Features
High breaking capacity, Adjustable thermal-magnetic release, Compact design

Application
Panel boards, Power distribution

Housing Material
High strength thermoset plastic

Wireless
No

Operating Temperature
-25C to +70C

Signal Type
Does not apply

Mounting Thread
Not Applicable (fixed mounting)

Sensor Type
Thermal Magnetic

Product Type
Moulded Case Circuit Breaker (MCCB)

Material
Engineered plastic & metal alloy

Input
AC Power Circuit

Output
Circuit isolation/protection trip

Function
Overcurrent, Short Circuit and Overload Protection

Usage
Industrial and commercial electrical circuits

Accuracy
High reliability, not specified

Voltage
415V AC

Weight
Approx. 2.1 kg

Adjustment Range
Fixed

Standards Compliance
IEC 60947-2

Frame Size
XTI H

Rated Current
125A

Trip Curve
Type C

Current Limiting Class
Class 3

Reference Code
XTI H 125A TP 70kA TMD-TMF

Breaking Capacity
70kA at 415V AC

Handle Type
Toggle

Number of Poles
3 Pole (TP)

Release Type
TMD (Thermo-magnetic), TMF (Thermal magnetic fixed)

Series
XTI H Series

Terminal Type
Screw terminal

ABB XTI H 125A TP 70kA TMD -TMF MCCB Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

ABB XTI H 125A TP 70kA TMD -TMF MCCB About

Unlock the possibilities of premier electrical protection with the ABB XTI H 125A TP 70kA TMD-TMF MCCB, engineered for triumphant performance in demanding settings. Highlighted by an impressive 70kA breaking capacity and robust high-strength thermoset plastic housing, this compact device promises breathtaking reliability. This MCCB offers instant savings with its low power consumption and superior safety features, making it a standout solution for industrial and commercial applications. Ensure your circuits are guarded with the standard-setting excellence of ABB's XTI H Series!

Versatile Applications for Industrial & Commercial Use

The ABB XTI H 125A TP 70kA TMD-TMF MCCB is specifically designed for protecting industrial and commercial electrical networks. It is widely used as a main breaker in panel boards, power distribution panels, and other high-demand environments. Providing overcurrent, short circuit, and overload protection, this MCCB's highlighted feature is its suitability for both general distribution and sensitive equipment. Operators in manufacturing units, large office complexes, or infrastructure projects will find its performance reliable and efficient.

Flexible Export Terms & Industry Certifications

The ABB XTI H 125A TP 70kA TMD-TMF MCCB is available for export across India with accessible asking prices for bulk orders. FOB Port options provide tailored transport services and reliable drop-off for your business needs. Certified to IEC 60947-2 standards, this MCCB guarantees quality and compliance. Payment terms are flexible and may include TT, LC, or other negotiable formats, ensuring a hassle-free procurement experience for suppliers, traders, and exporters alike.

FAQ's of ABB XTI H 125A TP 70kA TMD -TMF MCCB:

Q: How does the ABB XTI H 125A TP 70kA TMD-TMF MCCB enhance protection in power distribution?

A: This MCCB offers high breaking capacity (70kA) and rapid fault response, delivering overcurrent, short circuit, and overload protection for industrial or commercial circuits.

Q: What are the main applications for this MCCB?

A: It's primarily used in panel boards, power distribution systems, and various electric control panels within industrial and commercial environments.

Q: When should I consider using the ABB XTI H 125A TP 70kA TMD-TMF MCCB?

A: Use this MCCB when high reliability, robust protection, and compliance with IEC 60947-2 are critical for your installation, especially in high-current environments.

Q: Where can I source this MCCB, and what export options are available?

A: This MCCB is supplied, traded, and exported throughout India with options for FOB port shipping, offering reliable transport and drop-off services.

Q: What certifications ensure the quality and safety of this MCCB?

A: It is fully compliant with IEC 60947-2 standards, ensuring premier safety, operational reliability, and international quality for your power systems.
