400X400 Meanwell Lrs Series 100-12 Smps C

Send Inquiry

Request To Call Back

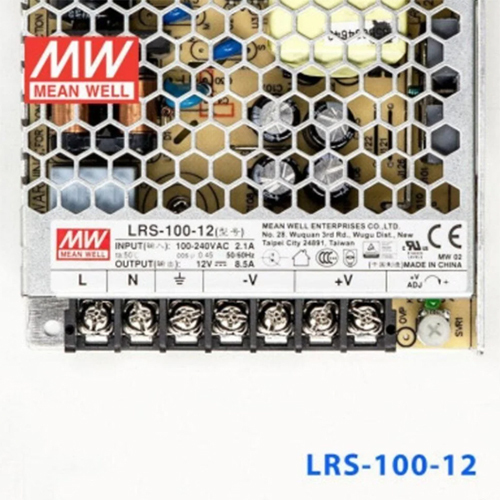

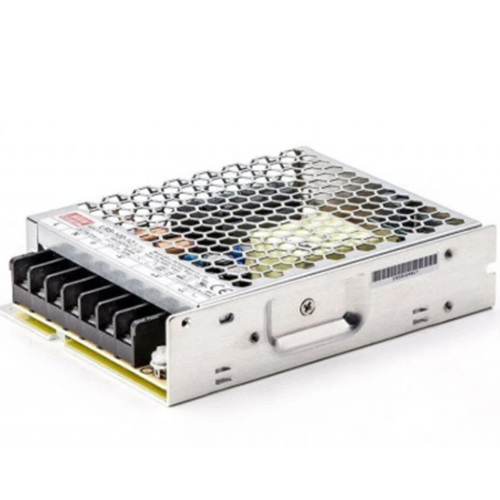

400X400 Meanwell Lrs Series 100-12 Smps C

Name: 400X400 Meanwell Lrs Series 100-12 Smps C
Brand: Electro Automation Industries
Price: 750 INR
Availability: InStock

Price 750 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

400X400 Meanwell Lrs Series 100-12 Smps C Specification

Working Temperature
-30C to +70C

Output Current
8.5A

Noise Level
<150mVp-p

Application
Industrial Automation, LED Lighting

Output Type
Single Output

Power Factor
0.5

Features
Low profile, High reliability

Connector Type
Screw terminal

Phase
Single Phase

Rated Current
8.5A

Operating Temperature
-30C to +70C

Current Range
0-8.5A

Cooling Method
Convection cooled

Rated Power
102W

Power Supply
AC-DC

Product Type
SMPS (Switch Mode Power Supply)

Output Power
102W

Output Frequency
47-63Hz

Input Voltage
100-240VAC

Voltage Protection
Over Voltage, Over Load, Short Circuit

Efficiency
Up to 88%

Material
Metal Casing

Line Regulation
0.5%

Storage Temperature
-40C to +85C

Weight
360g

Dimension
129x97x30mm

IP Rating
IP20

Humidity
90% RH max

MTBF
>720,600 hours

Mounting Type
Chassis Mount

Leakage Current
<0.75mA

400X400 Meanwell Lrs Series 100-12 Smps C Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About 400X400 Meanwell Lrs Series 100-12 Smps C

Get remarkable value and commanding performance with the famed 400X400 Meanwell LRS Series 100-12 SMPS C. This dazzling, cost-effective AC-DC power supply stands out in industrial automation and LED lighting, thanks to its low-profile construction and high reliability. With a dazzling efficiency of up to 88%, it is engineered for convenience with a chassis mount design and screw terminal connectors. Its robust metal casing and multiple voltage protections ensure operational safety, while the impressive MTBF and leakage current rating enhance reliability. Ideal for exporters, suppliers, and traders in India promoting reliable power solutions.

Versatile Application Excellence

The 400X400 Meanwell LRS Series 100-12 SMPS C impresses with its adaptable application method-securing easily via chassis mount. Its performance thrives across diverse industrial media such as automated production lines and LED installations. The plant application is straightforward, simplifying integration into complex systems to regulate power for consistent, stable operation in demanding environments. Designed for both reliability and ease, it's a prized choice for ensuring plant-wide productivity and efficiency.

Domestic Market & Logistics Certifications

The 400X400 Meanwell LRS Series 100-12 SMPS C is widely recognized in the main domestic market for its compliance and certifications. Standard payment terms ease acquisition, allowing flexible quotations for bulk requirements. Efficient transportation solutions guarantee prompt delivery of shipped goods. Our robust logistics ensure each unit reaches you safely and swiftly, supported by clear certifications so you can make well-informed purchasing decisions every time.

FAQ's of 400X400 Meanwell Lrs Series 100-12 Smps C:

Q: How do you mount the 400X400 Meanwell LRS Series 100-12 SMPS C?

A: The unit is designed for chassis mounting, enabling secure installation within industrial panels or equipment enclosures using standard screws and brackets.

Q: What protection features are integrated in the SMPS C?

A: This model includes over voltage, over load, and short circuit protection to guarantee operational safety during demanding industrial applications.

Q: When is it recommended to use this SMPS in industrial plants?

A: It's ideal when consistent, regulated AC-DC power is necessary-particularly in industrial automation and LED lighting systems requiring high reliability and low-profile installation.

Q: Where can this product be shipped within India?

A: We arrange transportation and shipment of goods across all major regions in India, ensuring nationwide coverage for timely delivery.

Q: What is the efficiency rate and why is it beneficial?

A: With up to 88% efficiency, the SMPS C reduces energy waste and operational costs, promoting a cost-effective solution for both industrial and lighting applications.
